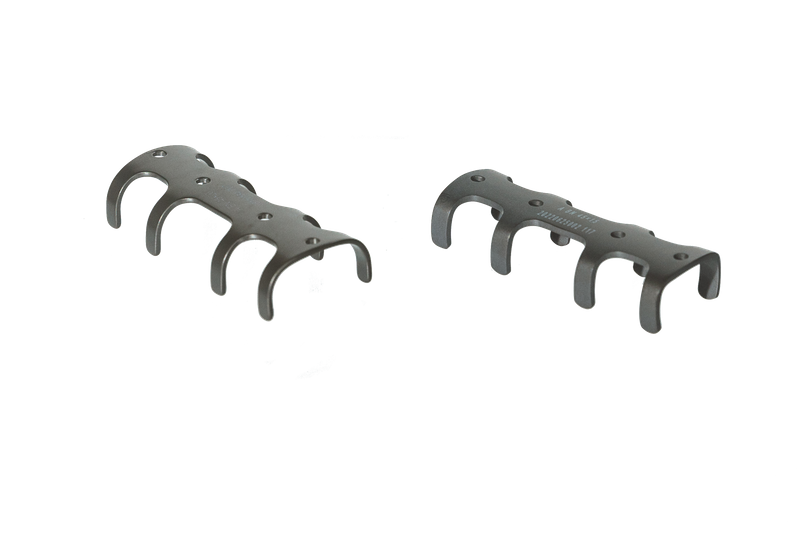

The HAN-52 Rib Plate

The product is made of pure titanium, which has good biocompatibility and can be used for MRI and CT examinations after surgery, with no artifacts and clear images;
The product itself has a certain strength, and does not require free intercostal space and periosteum, which is more conducive to bone end healing, especially in the hidden position under the scapula, and can be well fixed with special tools;
The product can be fixed with special tools according to the width and thickness of the ribs, without being too tight or too loose, and can be pre-shaped according to the curve of the ribs to achieve a better fit. The fracture end is not easy to rotate and displace after surgery, and it is stable and reliable:
The reasonable claw position of the product effectively reduces the postoperative pain caused by the instability of the fracture end;
The operation is simple and easy, and the supporting tools can be used for minimally invasive implantation, which reduces the number of operation steps, shortens the operation time, and reduces the probability of postoperative infection;
The product is lightweight, with less discomfort and long-term pain after surgery, and can be retained in the body for a long time without the need for secondary surgery to remove it, reducing the pain and economic burden on patients. It not only solves the previous controversy over surgical relief, but also has irreplaceable advantages over other internal fixation materials.

Model:
HAN-52
Brand:
Hanseeker
Code:
52

Availability:

Quantity:



Inquire Add to Basket

Product Description

Specification

Product code	Specification(mm)	Remark
7.004.502.003	45*11
7.004.502.004	45*15
7.004.502.001	45*20
7.004.502.005	55*15
7.004.502.002	55*20
7.004.502.006	45*20	Heightened type
7.004.502.007	55*20	Heightened type

Rib plate installation equipment package

Product name	Quantity
Straight Clip Applier	1
Curved Clip Applier	1
Single-sided clip applier	1
Scapula clip applier	1
Instrument Box	1
Rib plate bender	1

Indications

It is suitable for internal fixation of floating chest wall and single or multiple rib fractures with obvious dislocation. It is especially suitable for patients with complications such as floating chest wall, flail chest, hemothorax, etc. It can be customized for rib reconstruction after rib tumor resection, and can also be used for rib docking after thoracotomy and rib breaking.
